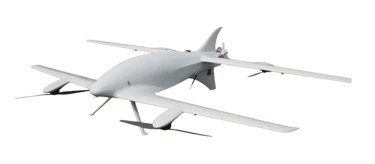

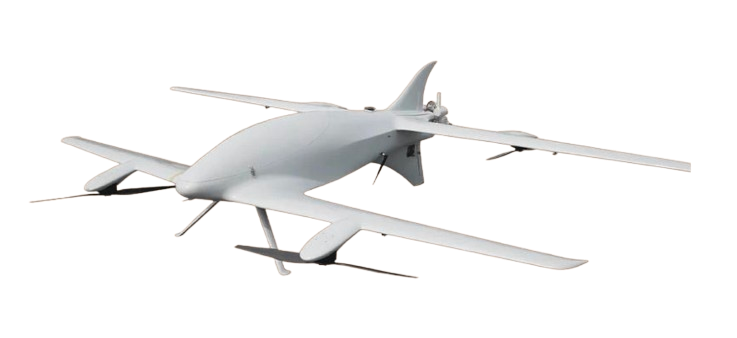

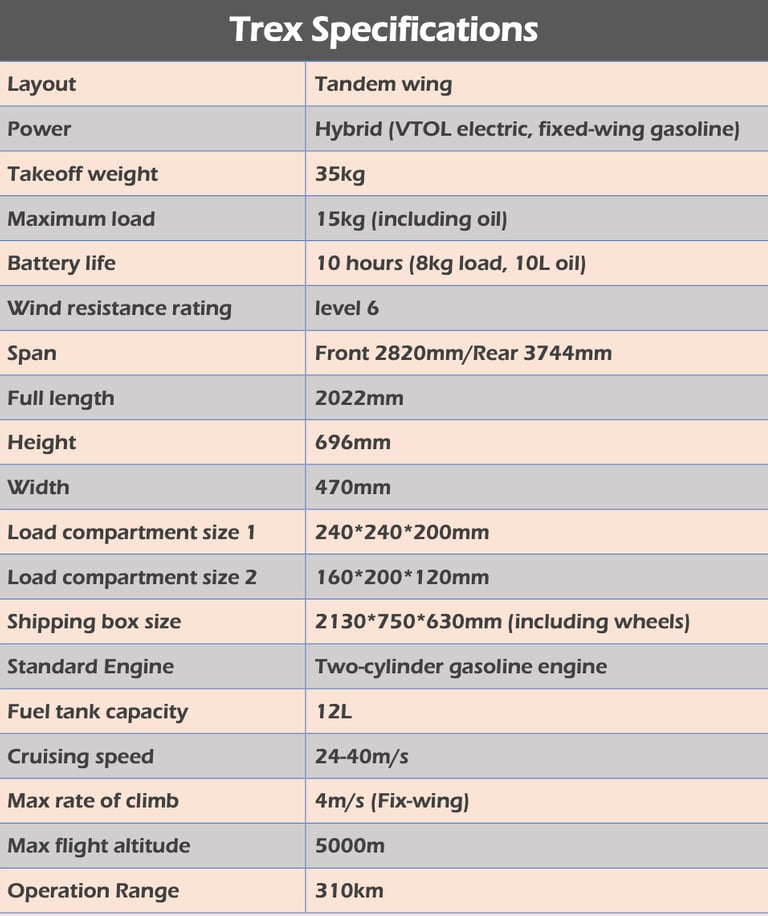

Trex® Gasoline-Electric VTOL UAV

Trex® is a 35kg gasoline hybrid tandem-wing vertical take-off and

landing fixed-wing Unmanned Aerial Vehicle (UAV). The innovative

tandem wing design, featuring two wings arranged one behind the

other, significantly reduces the wing's induced drag. This results in a

higher lift-to-drag ratio during cruising, improving cruising efficiency.

Compared to conventional configurations, the tandem wing

configuration offers lower cruise resistance and fuel consumption per

hour at the same speed and weight. This enables Trex® to achieve up

to 10 hours of flight time. Equipped with robust autopilot and

communication links, it supports remote take-off and landing, moving

platform take-off and landing, terrain following, cluster formation, and

other advanced features. Trex® is well-suited for aerial surveying,

mapping, inspection, fire safety, material delivery, and other application

fields.

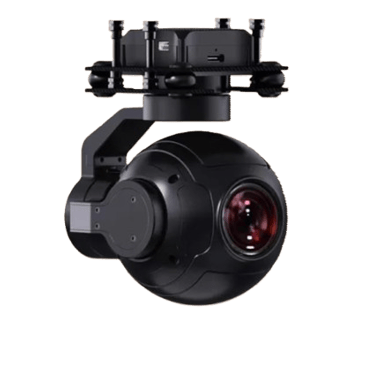

Adaptable Gimbal Camera:

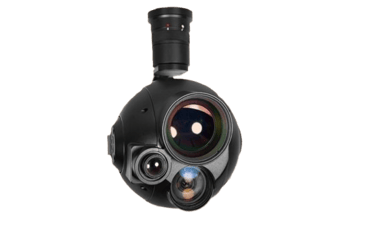

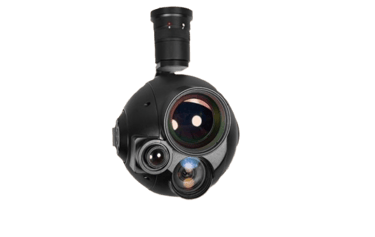

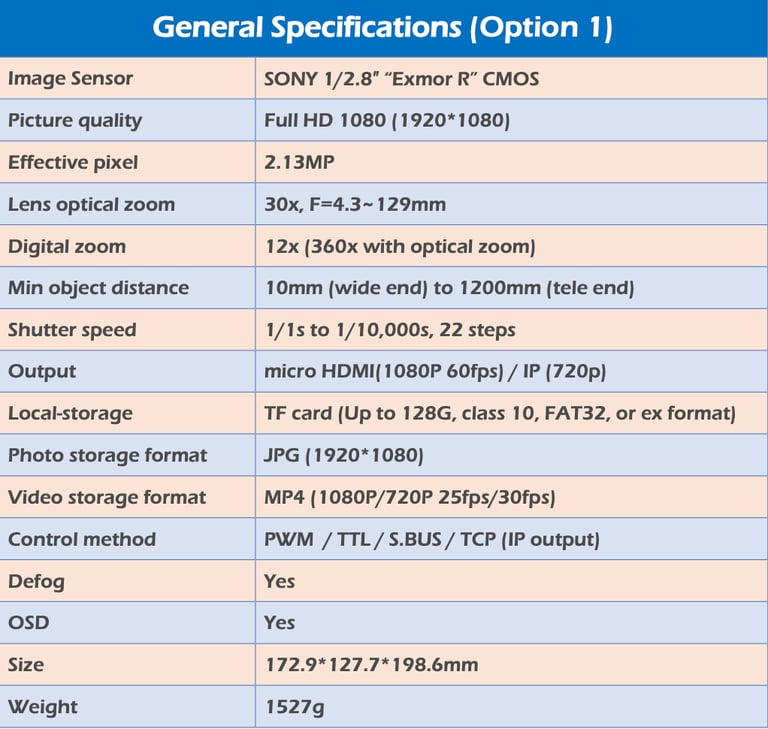

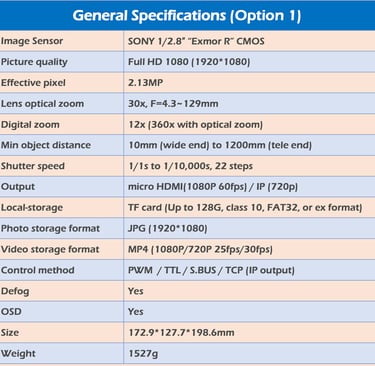

Option 1:

1. High-Resolution Dual Thermal Zooming

2. Visible Light and Thermal Imager

3. Object Tracking

4. 30x Advanced Optical Zoom

5. EO Night Vision

6. Multi Output Methods Optional

7. Multi Control Methods

8. Compatible Thermal Camera with Viewport

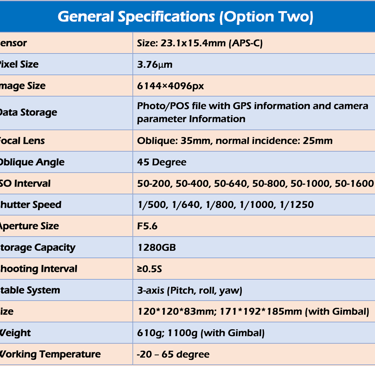

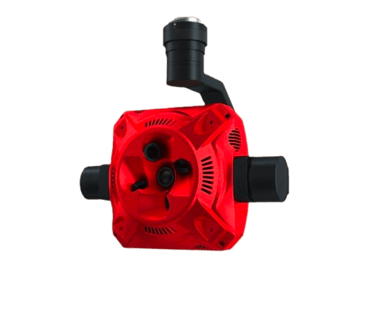

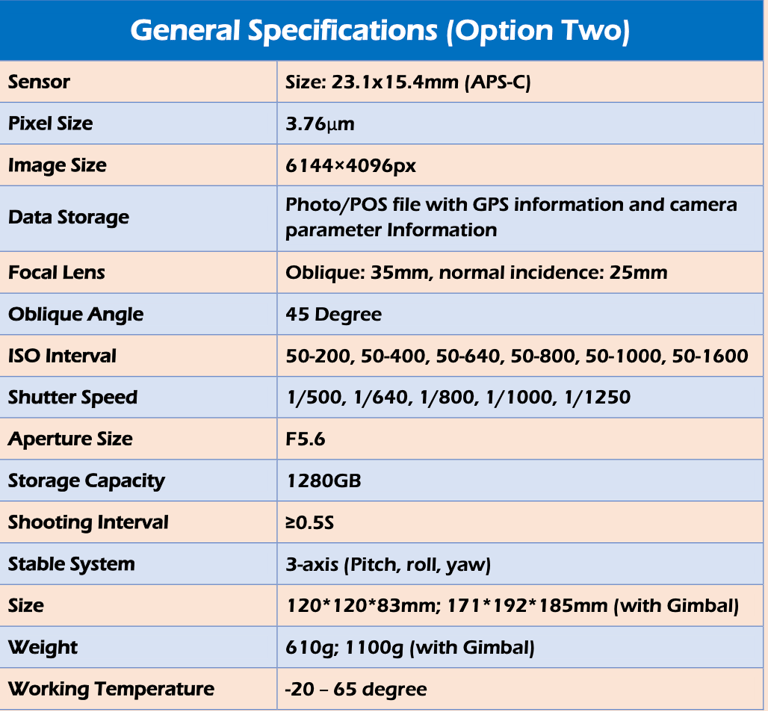

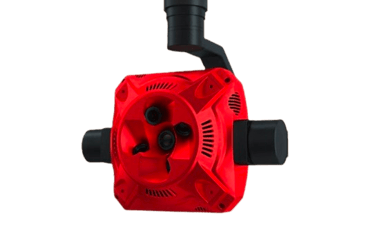

Option 2:

1. Self-developed S-OPG Mapping Image Control System

2. Multi-Angle Picturing

3. Super Durable S-GS Global Shutter

4. Self-Developed Professional S-Ml Mapping Lens

5. Abundant and Clear Screen Display

6. Intelligent Stabilizing Orthographic Mapping

7. Supporting Macro-Photogrammetry

8. Intelligent Stabilizing Orthographic Mapping

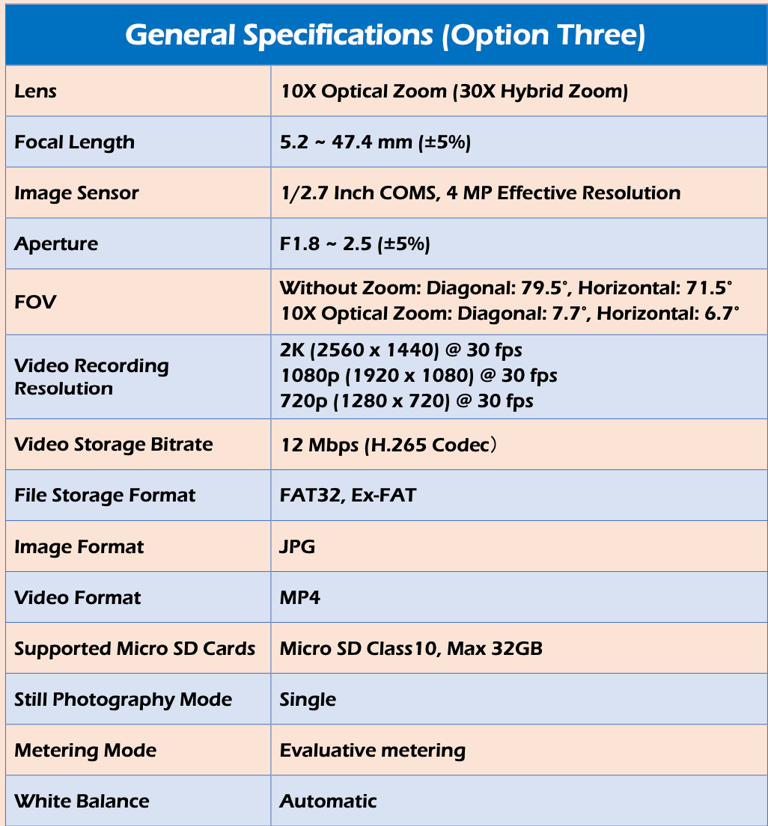

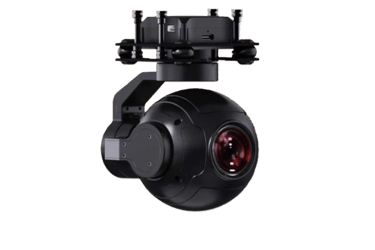

Option 3:

1. 30X Hybrid & 10X Optical Zoom

2. 2K Quad HD Video & Photography

3. 320-degree Yaw Axis Rotation

4. Nose Mode

5. Upside Down Mode

6. Compatible with ArduPilot & PX4 (MAVLINK)

7. High Accuracy & High Collaboration Control Algorithm
